Description

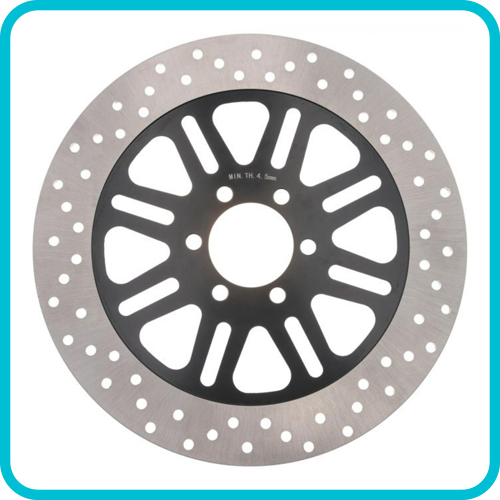

SUZUKI VS400, VS600, VS700, VS800, VS1400 INTRUDER (1987-02) Brake Disc (Front) Solid Round Suzuki MD3032

Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market. Performance at your fingertips.

Discs sold singularly.

Solid discs
Constructed using one complete segment of Japanese SUS 420 stainless steel, then heat treated to HRC 36+-2 standards. Lightening and drill hole patterns are applied as per OEM specifications to improve braking performance and reduce the discs temperature during use.

• Precision CNC machined and laser cut technology
• Japanese SUS 420 Stainless Steel
• Replacement for Original Equipment
• OEM Design; lightening & drill hole patterns


  Detail	Value
  Outer Diameter (mm)	295
  Inner Diameter (mm)	57
  Bolt Hole Circumference (mm)	78
  Bolt Hole Quantity	6
  Bolt Hole Size (mm)	10.5
  Thickness (mm)	5
  Minimum Thickness (mm)	4.5
  Bolt Hole Type	Counterbored

  Suzuki

  Model	Year
  VS 1400 GL Intruder	1992 1993 2000 2001 2002
  VS 1400 GL Intruder (PH)	1987 1988
  VS 1400 GL Intruder (PH) (TO SEP 89)	1989
  VS 1400 GL Intruder (PJ)	1989 1990
  VS 1400 GL Intruder (PJ) (FROM SEP 88)	1988
  VS 1400 GL Intruder (PJ) (TO APR 91)	1991
  VS 1400 GL Intruder (PR) (FROM SEP 94)	1994
  VS 1400 GL Intruder (PS)	1995
  VS 1400 GL Intruder (PT) (TO SEP 96)	1996
  VS 1400 GL Intruder (PV)	1997
  VS 1400 GL Intruder (PV) (FROM OCT 96)	1996
  VS 1400 GL Intruder (PV) (TO JAN 98)	1998
  VS 1400 GL Intruder (PW)	1999
  VS 1400 GL Intruder (PW) (FROM FEB 98)	1998
  VS 400 Intruder	1994 1995 1996
  VS 600 GL Intruder (S)	1995
  VS 600 GL Intruder (T)	1996
  VS 600 GL Intruder (V)	1997
  VS 700 GLFH	1986
  VS 700 GLPH	1987
  VS 750 Intruder	1988 1989 1990 1991
  VS 800 GL	1998 1999
  VS 800 GL (N)	1991
  VS 800 GL (N) (TO NOV 92)	1992
  VS 800 GL (P) (FROM DEC 92)	1992
  VS 800 GL (P) (TO JUL 93)	1993
  VS 800 GL (R)	1994
  VS 800 GL (R) (FROM AUG 93)	1993
  VS 800 GL (R) (TO APR 95)	1995
  VS 800 GL (S)	1995
  VS 800 GL (T)	1996
  VS 800 GL (T) (FROM DEC 95)	1995
  VS 800 GL (V)	1997
