Description

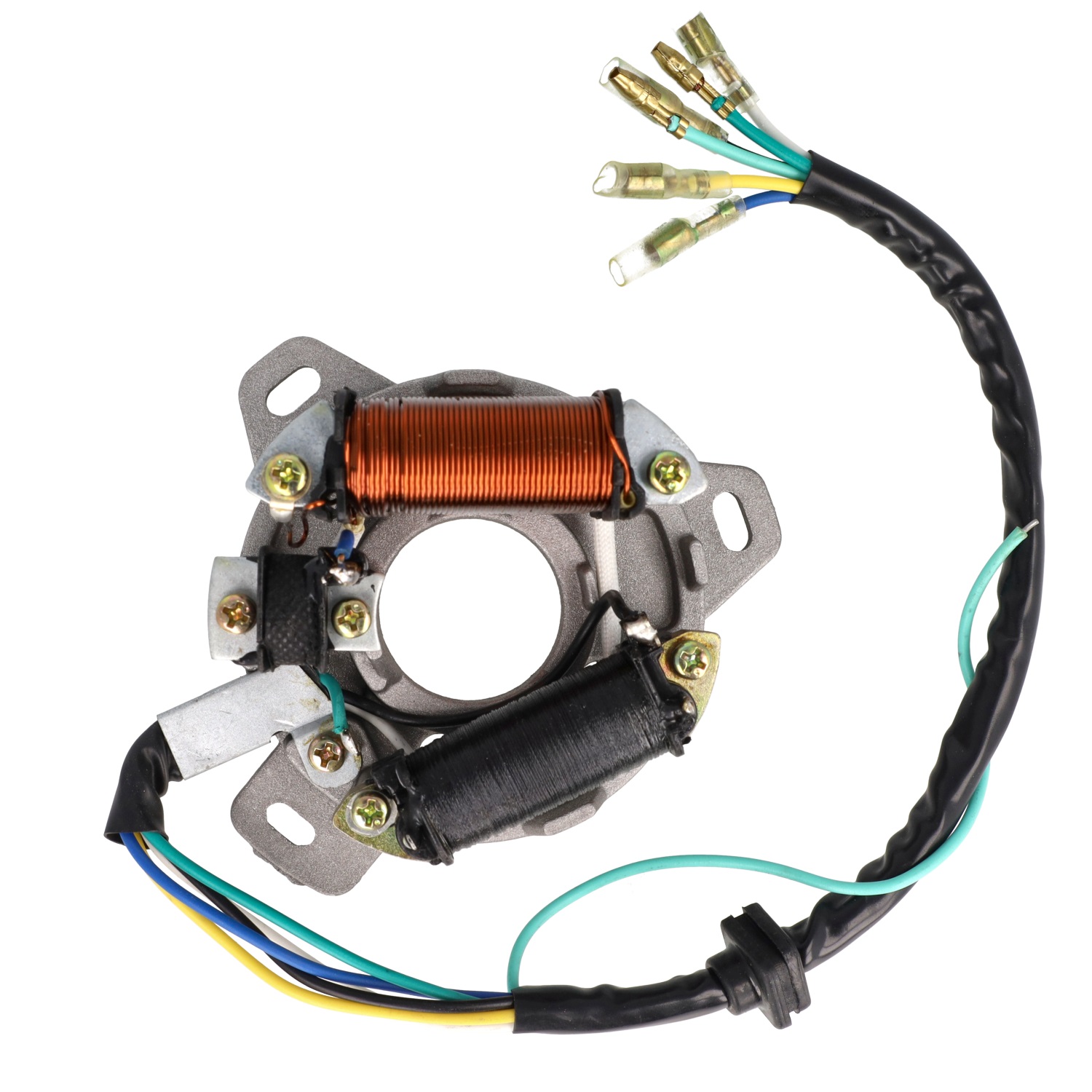

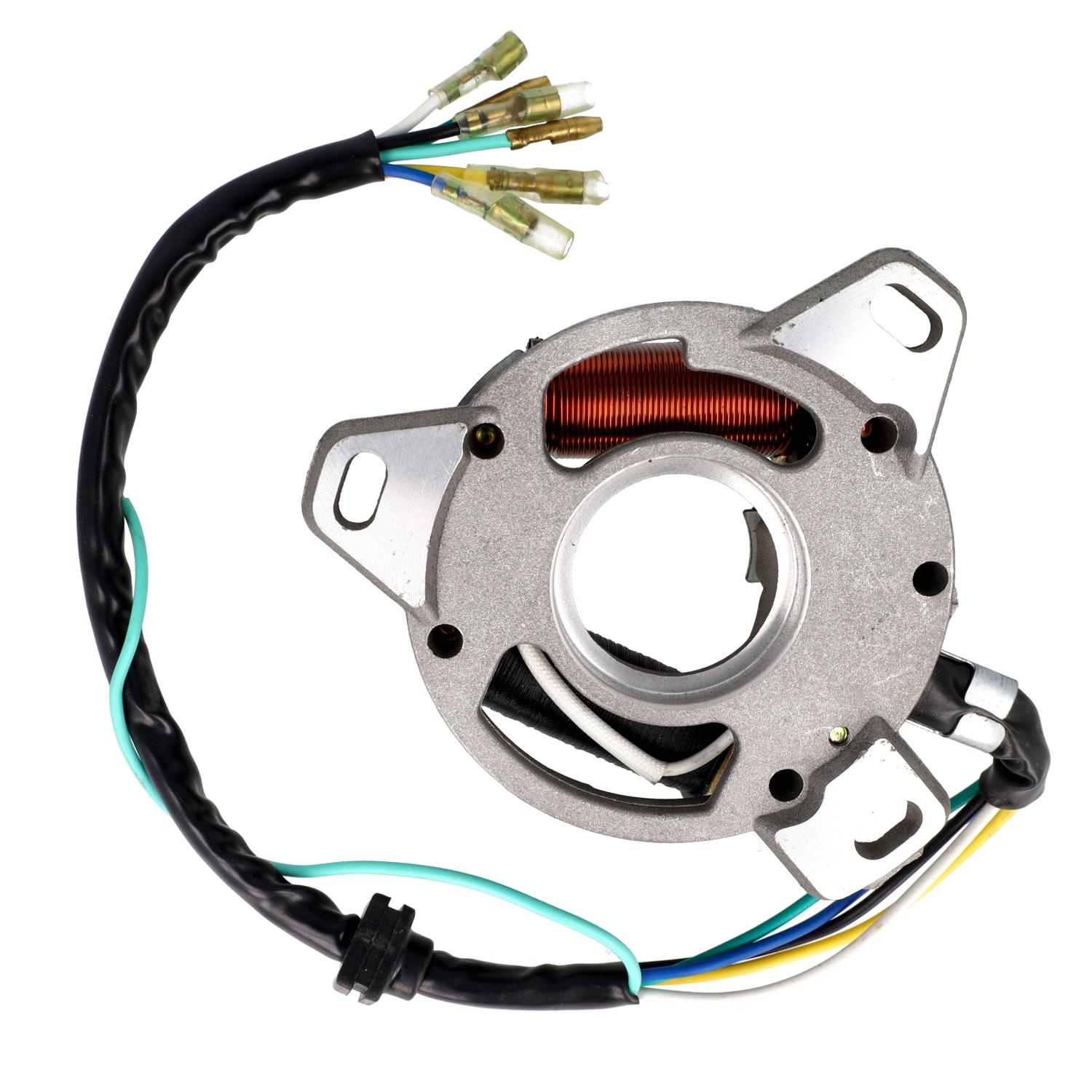

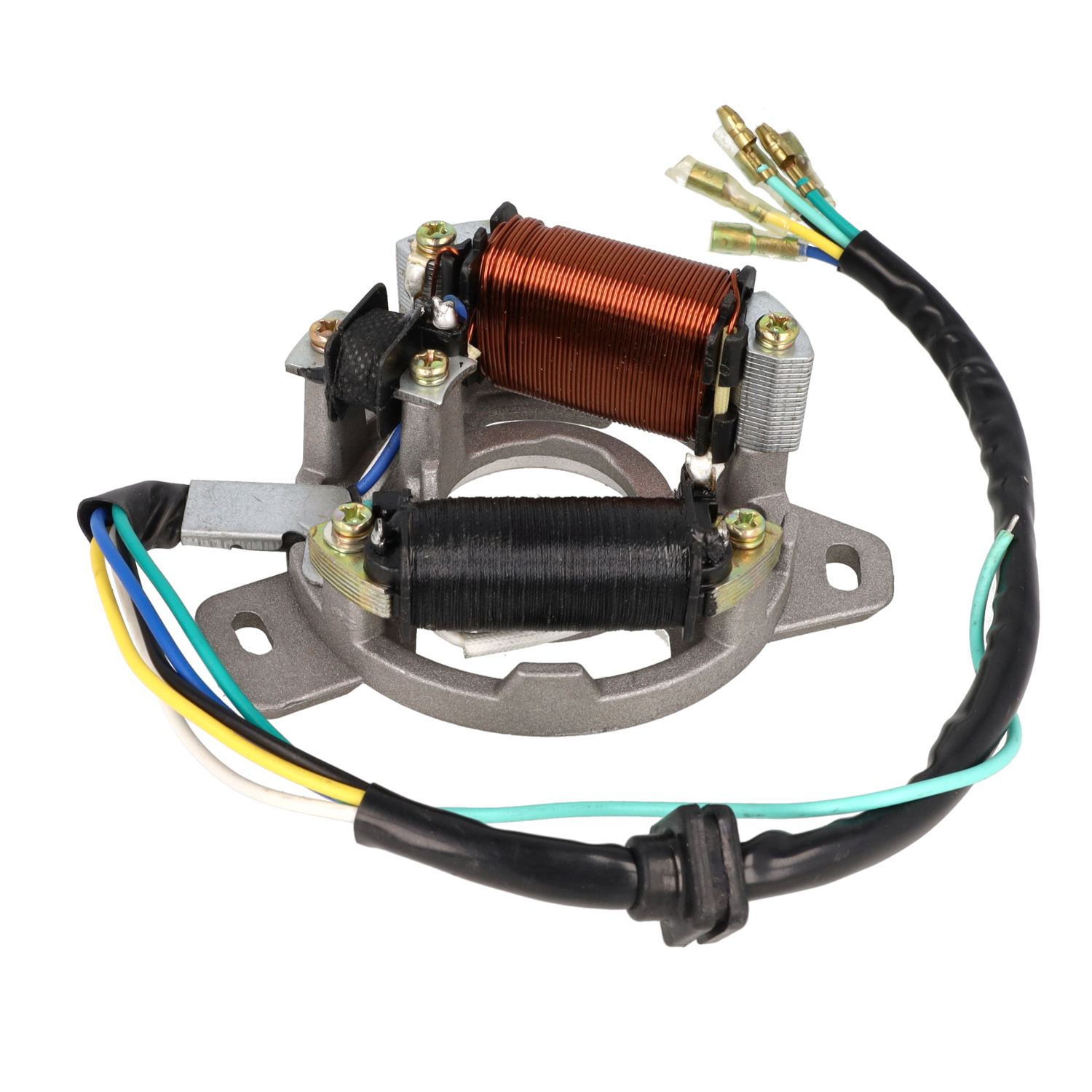

HONDA MB50/MB80, HONDA MT50/MT80 HONDA MTX50/MTX80 HONDA NSR50 IGNITION STATOR ASSEMBLY 31100-166-004/008
GENUINE PART No 31100-166-004 & 31100-166-008
MMP13602

SIZES
DIAMITER ACCROSS COILS 85mm
DEPTH FROM BACK OF BACKPLATE TO FRONT EDGE OF BIG COIL 47mm
INNER HOLE CENTRE 33mm
OLE BACK RECESS OD 37.5mm
MOUNTING HOLE CENTRES X2 AT 78mm X 1 AT 96mm
CAST ALLOY BODY DIAMITER 83mm
BASE PLATE THICNESS 10mm
WIRERING LOOM 6 WIRE, DARK BLUE WITH FEMALE SHROUDED, WHITE FEMALE SHROUDED, BLACK FEMALE SHROUDED, YELLOE FEMALE SHROUDED, GREEN MALE NOT SHROUDED, LIGHT GREEN MALE NOT SHROUDED
