Description

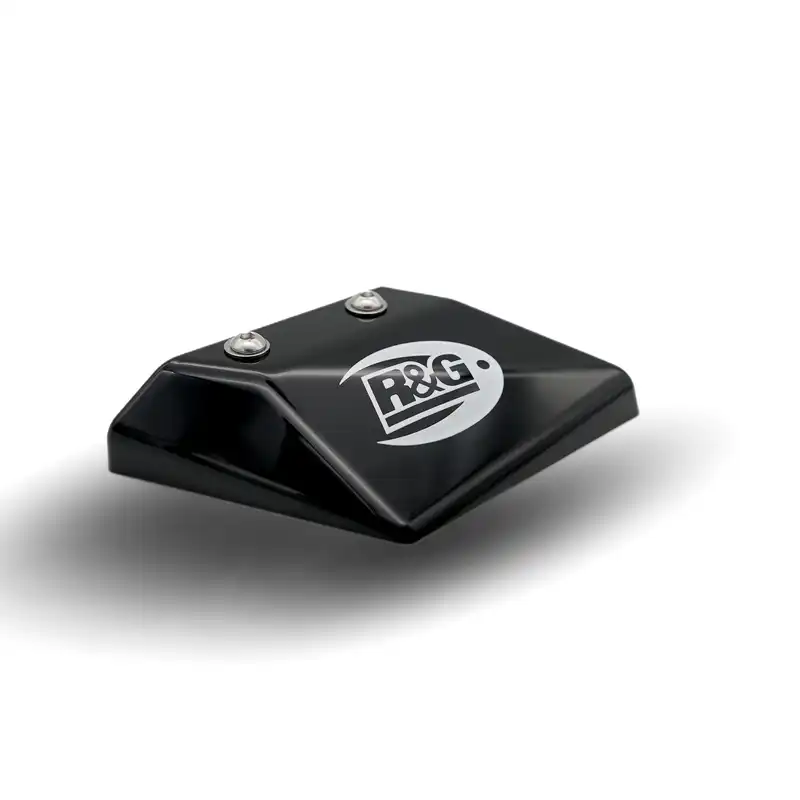

R & G SWINGING ARM CHAIN TOE GUARD (SHARKS FIN) FITS 181 BIKES TG0001BK
FITTING INSTRUCTIONS FOR R&G WSB TOE GUARD

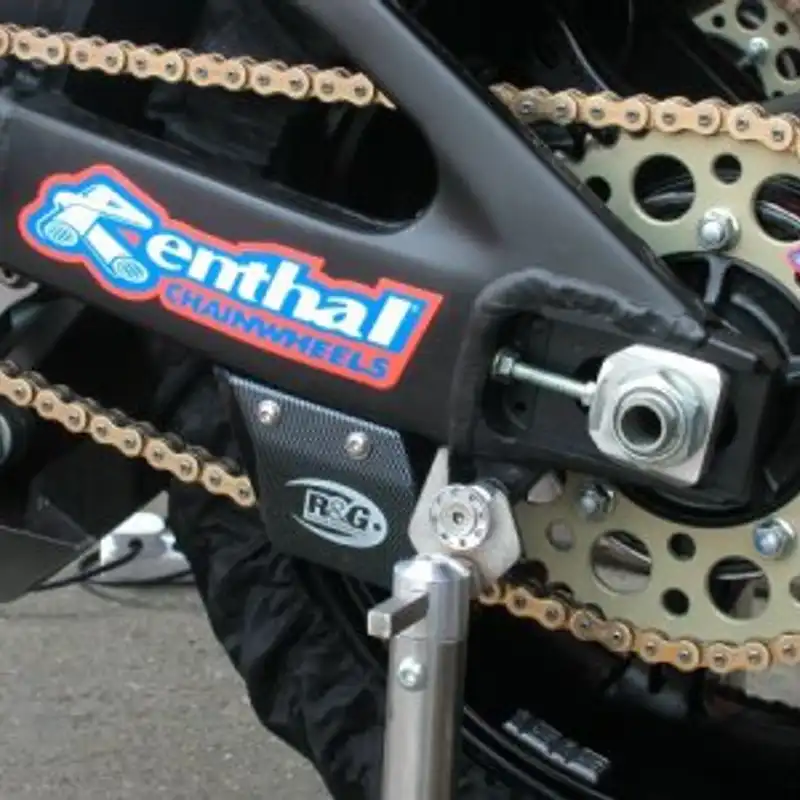

Locate the toe guard block on the underside of the rear swingarm, on the nearside of
the bike, in front of the rear sprocket.
Mark and drill two 5mm holes into the underside of the swingarm
Tap holes M6
Insert M6 x 16mm long allen screws through block and into swingarm – only enough
to hold in place – not tight yet
Slide shark’s fin over block
Screw shark’s fin onto block, using the bolts provided
Tighten block to swingarm

FIT’S
APRILIA  FACTORY, FALCO, FUTURA, RSV MILLE, RSVR, SXV450, SXV550, TUONO
BENELLI TNT, TORNADO RS
BMW F800S, F800ST, HP2, K1200R, K1200S, K1300S, R1200S
CAGIVA MITO 125, RAPTOR 1000, RAPTOR 650
CCM R30
DUCATI 1000DS, 600SS, 749, 750SS, 900SS, 999, MONSTER ALL, MTS MULTISTRADA 1100, ST3, ST4
GASGAS 125/250/450
HONDA BROSS, CB1300, CB250 HORNET, CB400, CB500, CB600 HORNET, CB900 HORNET, CBF1000 ABS, CBF500, CBF600, CBR1000RR FIREBLADE, CBR1000RR-R FIREBLADE, CBR1100 BLACKBIRD, CBR125R, CBR400 GULL ARM, CBR400 TRI ARM, CBR600, CBR600 FM-FR, CBR600 ALU FRAME, CBR600RR, CBR900 FIREBLADE, CRF250, CRF450, CRX250, FMX650, INTERCEPTOR, NSR125, RVF750 (RC45), VTR1000 FIRESTORM, VTR1000 SP1, VTR1000 SP2, XR650R.
HUSQVARNA SM125, SM610, SMR450, SMR510, SMR570
HYOSUNG GT125R, GT650R, GT650S
KAWASAKI ER-5, ER-6, GPZ500, KLV1000, NINJA 650, VERSYS 650, Z1000, Z750, Z750R, Z750S, ZRX1100, ZRX1200, ZX-10R, ZX 12R, ZX6-R, ZX7-RP3, ZX7-RP4, ZX7-RP5, ZX7R-P6,  ZX7R-P7, ZX9R-C1, ZX9R-C2, ZX9R-E1, ZX9R-E2, ZX9R-F, ZXR400, ZXR750, ZZR1100, ZZR1200, ZZR1400 (ZX14), ZZR600D, ZZR600E.
KTM  660SMC, 950 SUPERMOTO, 990 ADVENTURE, 990 SUPERDUKE, LC4
MV AGUSTA   BRUTALE 750, BRUTALE 910, BRUTALE 910SE, F4.
MZ  1000S FAIRED, 1000S UNFAIRED
SUZUKI  BANDIT 1200, BANDIT 1250, BANDIT 600, BANDIT 650, DL1000 V-STROM, DL650 V-STROM, DRZ400, DRZ400 SUPERMOTO, GS500, GSR600, GSX1400, GSX-F600F, GSX-F750F, GSX-R1000, GSX-R600, GSX-R750, HAYABUSA, RGV250, SV1000, SV650, TL1000S.
TRIUMPH  DAYTONA 600, DAYTONA 650, DAYTONA 675, SPEED FOUR, SPRINT RS, SPRINT ST, TIGER 1050, TIGER 955, TT600.
YAMAHA   FZS1000 FAZER, FZS600 FAZER, FZ1-N, FZ1-S, FZ6, FZR600R, MT01, TDM850, TDM900, THUNDERACE, THUNDERCAT, TRX850, V-MAX, WR250, WR450, XJR1200, XJR1300, XT660X, YZ250, YZ450F, YZ426F, YZF750, YZF-R1, YZF-R1SP, YZF-R6.
