Description

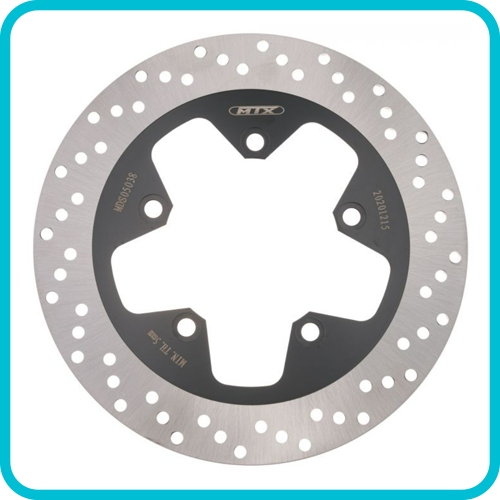

SUZUKI GSX1400 (2001-08) Performance Brake Disc (Rear) Solid Round Suzuki MD3083

Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market. Performance at your fingertips.

Discs sold singularly.

Solid discs
Constructed using one complete segment of Japanese SUS 420 stainless steel, then heat treated to HRC 36+-2 standards. Lightening and drill hole patterns are applied as per OEM specifications to improve braking performance and reduce the discs temperature during use.

• Precision CNC machined and laser cut technology
• Japanese SUS 420 Stainless Steel
• Replacement for Original Equipment
• OEM Design; lightening & drill hole patterns


  Detail	Value
  Outer Diameter (mm)	260
  Inner Diameter (mm)	105
  Bolt Hole Circumference (mm)	126
  Bolt Hole Quantity	5
  Bolt Hole Size (mm)	10.5
  Thickness (mm)	5.5
  Minimum Thickness (mm)	5
  Bolt Hole Type	Counterbored

  Suzuki

  Model	Year
  GSX 1400 (K2)	2001
  GSX 1400 (K2) (TO JUN 02)	2002
  GSX 1400 (K3)	2003
  GSX 1400 (K3) (FROM JUL 02)	2002
  GSX 1400 (K3) (TO FEB 04)	2004
  GSX 1400 (K4) (FROM MAR 04)	2004
  GSX 1400 (K5)	2005
  GSX 1400 (K5) (TO JAN 06)	2006
  GSX 1400 (K6) (FROM FEB 06)	2006
  GSX1400 FE (K5)	2006
  GSX1400 FE (K5) (TO MAR 07)	2007
  GSX1400 FE (K7)	2008
  GSX1400 FE (K7) (FROM APR 07)	2007
