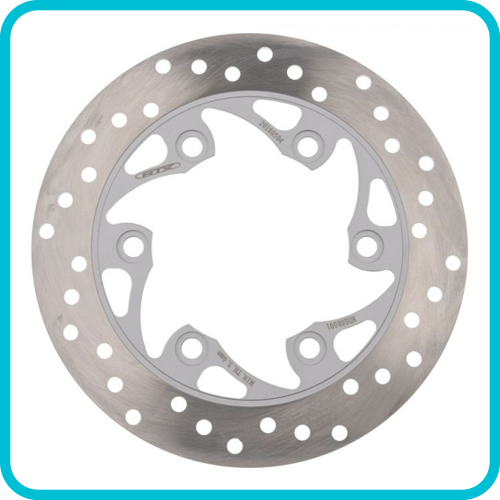

KTM 125/200/250/390 DUKE, RC125/200/390 Performance Brake Disc (Rear) Solid Round KTM MD850

Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market. Performance at your fingertips.

Discs sold singularly.

Solid discs
Constructed using one complete segment of Japanese SUS 420 stainless steel, then heat treated to HRC 36+-2 standards. Lightening and drill hole patterns are applied as per OEM specifications to improve braking performance and reduce the discs temperature during use.

• Precision CNC machined and laser cut technology
• Japanese SUS 420 Stainless Steel
• Replacement for Original Equipment
• OEM Design; lightening & drill hole patterns


  Detail	Value
  Outer Diameter (mm)	230
  Inner Diameter (mm)	104
  Bolt Hole Circumference (mm)
  Bolt Hole Quantity	6
  Bolt Hole Size (mm)	6.5
  Thickness (mm)	4
  Minimum Thickness (mm)	3.6
  Bolt Hole Type	Counterbored

  KTM

  Model	Year
  125 Duke	2011 2012 2013 2014 2015 2017 2018 2019 2020
  125 Duke (FROM DEC 16)	2016
  125 Duke (TO DEC 16)	2016
  200 Duke	2012 2013 2014 2015
  390 Duke	2013 2014 2015 2016 2018 2019 2020
  390 Duke (FROM APR 17)	2017
  390 Duke (TO APR 17)	2017
  Duke 250	2015 2016 2017 2018 2019 2020
  RC 125	2014 2015
  RC 200	2014 2015
  RC 390	2014 2015 2016 2017 2018 2019 2020
