Description

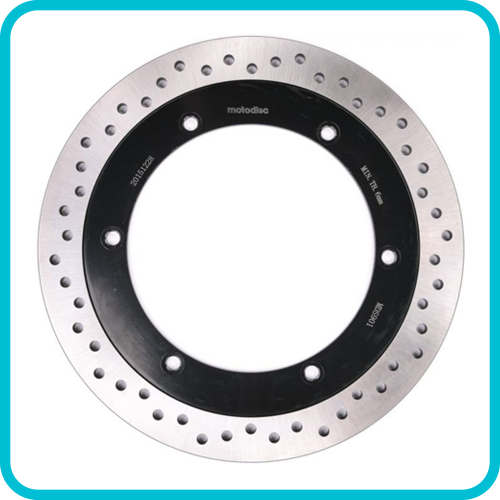

HONDA GL 1500 C VTX 1800 C MTX Performance Brake Disc Rear Solid Round Honda MD1148

Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market. Performance at your fingertips.

Discs sold singularly.

Solid discs
Constructed using one complete segment of Japanese SUS 420 stainless steel, then heat treated to HRC 36+-2 standards. Lightening and drill hole patterns are applied as per OEM specifications to improve braking performance and reduce the discs temperature during use.

• Precision CNC machined and laser cut technology
• Japanese SUS 420 Stainless Steel
• Replacement for Original Equipment
• OEM Design; lightening & drill hole patterns


  Detail	Value
  Outer Diameter (mm)	316
  Inner Diameter (mm)	184
  Bolt Hole Circumference (mm)	206
  Bolt Hole Quantity	6
  Bolt Hole Size (mm)	10.5
  Thickness (mm)	7.5
  Minimum Thickness (mm)	6
  Bolt Hole Type	Counterbored

  Honda

  Model	Year
  GL 1500 C	2000 2001 2002 2003
  VTX 1800 C (1)	2001
  VTX 1800 C (1) (TO MAR 02)	2002
  VTX 1800 C (2)	2003
  VTX 1800 C (2) (FROM APR 02)	2002
  VTX 1800 C (4)	2004
  VTX 1800 C (5)	2005 2006 2007 2008
