Description

Harley Davidson XL1200, XL883, XR1200 Brake Disc (Rear) Solid Round Harley Davidson MD524

Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market. Performance at your fingertips.

Discs sold singularly.

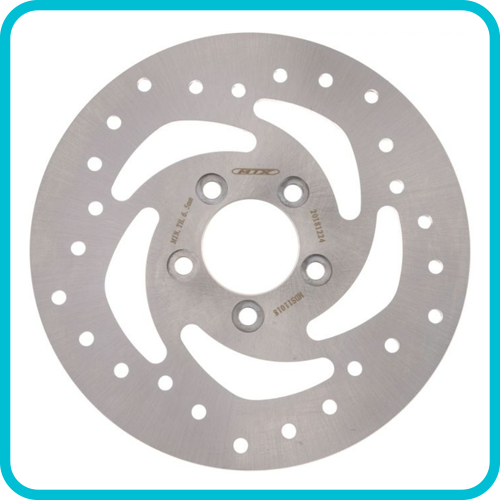

Solid discs
Constructed using one complete segment of Japanese SUS 420 stainless steel, then heat treated to HRC 36+-2 standards. Lightening and drill hole patterns are applied as per OEM specifications to improve braking performance and reduce the discs temperature during use.

• Precision CNC machined and laser cut technology
• Japanese SUS 420 Stainless Steel
• Replacement for Original Equipment
• OEM Design; lightening & drill hole patterns


  Detail	Value
  Outer Diameter (mm)	260
  Inner Diameter (mm)	56
  Bolt Hole Circumference (mm)	82.55
  Bolt Hole Quantity	5
  Bolt Hole Size (mm)	10.5
  Thickness (mm)	7
  Minimum Thickness (mm)	6.5
  Bolt Hole Type	Counterbored

  Harley Davidson

  Model	Year
  XL 1200 C Sportster Custom (Spoke Wheel)	2014 2015 2016 2017 2018 2019 2020
  XL 1200 L Sportster Low (Cast Wheel)	2007 2008 2009 2010 2011
  XL 1200 T Superlow	2014 2015 2016 2017 2018 2019 2020
  XL 1200 V SeventyTwo	2014 2015
  XL 1200 X Forty Eight	2014 2015 2016 2017 2018 2019 2020 2021
  XL 883 L Superlow	2011 2012 2013
  XL 883 L Superlow (Cast wheel)	2014 2015 2016 2017 2018 2019 2020
  XL 883 N Iron	2016 2017 2018 2019 2020
  XL 883 N Iron (Cast Wheel)	2011 2012 2013 2014 2015
  XL 883 R Roadster (Cast Wheel)	2011 2012 2013 2014 2015
  XR 1200	2008 2009 2010
  XR 1200 X	2010 2011 2012
