Description

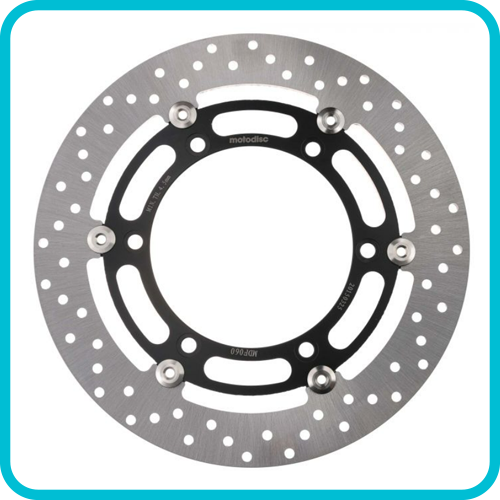

Triumph MTX Performance Brake Disc Front Floating Round Honda Triumph MD601

Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market. Performance at your fingertips.

Discs sold singularly.

Floating discs
Made from two segments of stainless steel which are rivetted together with bobbins to allow the braking surface of the disc to expand under the extreme temperatures of braking. Manufactured from Japanese SUS 420 stainless steel, then heat treated to HRC 36+-2 standards while the discs centres are manufactured from steel or alloy. Floating discs improve braking performance by ensuring the disc is always in perfect alignment with your pads for the perfect contact throughout all operating temperatures. Lightening and drill holes are then applied to further improve braking performance and reduce the disc temperature.

• Precision CNC machined and laser cut technology
• Japanese SUS 420 Stainless Steel
• Replacement for Original Equipment
• OEM Design; lightening & drill hole patterns


  Detail	Value
  Outer Diameter (mm)	310
  Inner Diameter (mm)	144
  Bolt Hole Circumference (mm)	166
  Bolt Hole Quantity	6
  Bolt Hole Size (mm)	10.5
  Thickness (mm)	5
  Minimum Thickness (mm)	4.5
  Bolt Hole Type	Counterbored

  Triumph

  Model	Year
  800 Bonneville	2000 2001 2002 2005
  800 Bonneville (FROM NOV 03)	2003
  800 Bonneville (FROM NOV 04)	2004
  800 Bonneville (TO OCT 03)	2003
  800 Bonneville (TO OCT 04)	2004
  800 Bonneville T100	2002 2003 2004
  Tiger 900	1997 1998 1999
  Tiger 955i	1999 2000 2001 2002
  Tiger 955i (FROM NOV 03)	2003
  Tiger 955i (TO OCT 03)	2003
  Tiger 955i (TO OCT 04)	2004
