SUZUKI MTX Performance Brake Disc Front Floating Round Suzuki MD3088

Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market. Performance at your fingertips.

Discs sold singularly.

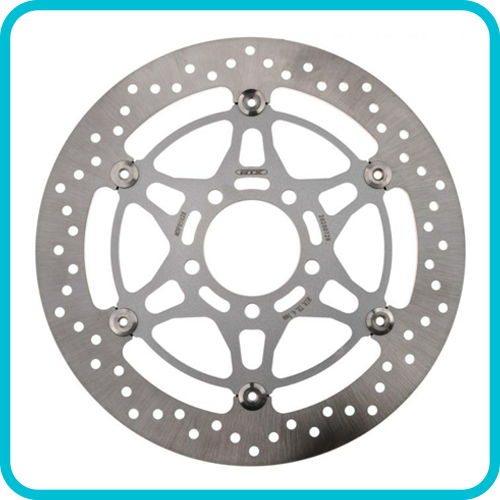

Floating discs
Made from two segments of stainless steel which are rivetted together with bobbins to allow the braking surface of the disc to expand under the extreme temperatures of braking. Manufactured from Japanese SUS 420 stainless steel, then heat treated to HRC 36+-2 standards while the discs centres are manufactured from steel or alloy. Floating discs improve braking performance by ensuring the disc is always in perfect alignment with your pads for the perfect contact throughout all operating temperatures. Lightening and drill holes are then applied to further improve braking performance and reduce the disc temperature.

• Precision CNC machined and laser cut technology
• Japanese SUS 420 Stainless Steel
• Replacement for Original Equipment
• OEM Design; lightening & drill hole patterns


  Detail	Value
  Outer Diameter (mm)	310
  Inner Diameter (mm)	69
  Bolt Hole Circumference (mm)	91
  Bolt Hole Quantity	5
  Bolt Hole Size (mm)	10.2
  Thickness (mm)	5
  Minimum Thickness (mm)	4.5
  Bolt Hole Type	Straight

  Suzuki

  Model	Year
  DL 1000 V-Strom (K2)	2002
  DL 1000 V-Strom (K2) (TO MAR 03)	2003
  DL 1000 V-Strom (K3)	2004
  DL 1000 V-Strom (K3) (FROM MAR 03)	2003
  DL 1000 V-Strom (K5) (TO NOV 05)	2005
  DL 1000 V-Strom (K6)	2006
  DL 1000 V-Strom (K6) (FROM DEC 05)	2005
  DL 1000 V-Strom (K7)	2007
  DL 1000 V-Strom (K8)	2008 2009
  DL 1000 V-Strom Grand Touring (K6)	2006
  DL 1000 V-Strom Grand Touring (K7)	2007
  DL 1000 V-Strom Grand Touring (K8)	2008 2009
  DL 650 V-Strom (K4) (TO NOV 04)	2004
  DL 650 V-Strom (K5) (FROM DEC 04)	2004
  DL 650 V-Strom (K5) (TO NOV 05)	2005
  DL 650 V-Strom (K6) (FROM DEC 05)	2005
  DL 650 V-Strom (K6) (TO JUL 06)	2006
  DL1000 V-Strom Grand Touring (K6)	2006
  DL1000 V-Strom Grand Touring (K7)	2007
  DL1000 V-Strom Grand Touring (K8)	2008 2009
  SV 1000 (K3)	2003
  SV 1000 (K3) (TO JUN 04)	2004
  SV 1000 (K4) (FROM JUL 04)	2004
  SV 1000 (K4) (TO JUN 05)	2005
  SV 1000 (K5) (FROM APR 05)	2005
  SV 1000 S (K3)	2003
  SV 1000 S (K3) (TO FEB 04)	2004
  SV 1000 S (K4) (FROM MAR 04)	2004
  SV 1000 S (K4) (TO FEB 05)	2005
  SV 1000 S (K5) (FROM MAR 05)	2005
  SV 1000 S (K5) (TO FEB 06)	2006
  SV 1000 S (K6)	2007
  SV 1000 S (K6) (FROM MAR 06)	2006
