Description

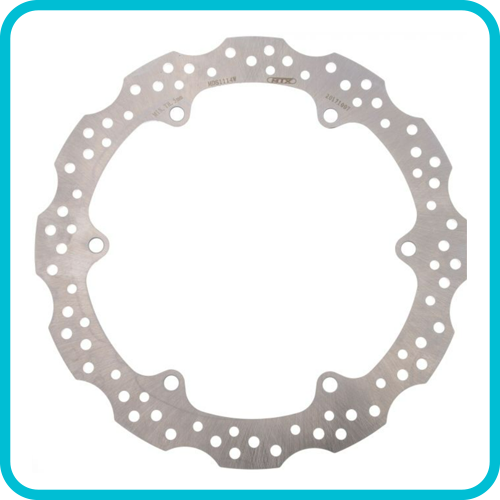

HONDA MTX Performance Brake Disc Front Solid Wavy Honda MD1200

Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market. Performance at your fingertips.

Discs sold singularly.

Solid discs
Constructed using one complete segment of Japanese SUS 420 stainless steel, then heat treated to HRC 36+-2 standards. Lightening and drill hole patterns are applied as per OEM specifications to improve braking performance and reduce the discs temperature during use.

• Precision CNC machined and laser cut technology
• Japanese SUS 420 Stainless Steel
• Replacement for Original Equipment
• OEM Design; lightening & drill hole patterns


  Detail	Value
  Outer Diameter (mm)	320
  Inner Diameter (mm)	210
  Bolt Hole Circumference (mm)	230
  Bolt Hole Quantity	6
  Bolt Hole Size (mm)	10.5
  Thickness (mm)	5
  Minimum Thickness (mm)	5
  Bolt Hole Type	Straight

  Honda

  Model	Year
  CB 500 F	2013 2014 2015
  CB 500 F ABS	2017 2018 2019 2020
  CB 500 F ABS (F) (FROM OCT 15)	2015
  CB 500 F ABS (F) (TO FEB 16)	2016
  CB 500 F ABS (G)	2016
  CB 500 X	2013 2014
  CB 500 X ABS	2017 2018 2019 2020
  CB 500 X ABS (F)	2015
  CB 500 X ABS (F) (TO FEB 16)	2016
  CB 500 X ABS (G)	2016
  CB 650 F ABS	2014 2015 2016 2017 2018
  CBR 500 R	2013 2014 2015
  CBR 500 R ABS	2016 2017 2018 2019 2020 2021
  CTX 700 (DCT)	2014 2015 2016 2017 2018 2019 2020 2021
  NC 700 SA	2012 2013
  NC 700 SAD	2012 2013
  NC 700 X	2012 2013
  NC 700 XA	2012 2013
  NC 750 D Integra	2019 2020 2021
  NC 750 D Integra S (E)	2014 2015
  NC 750 D Integra S (E) (TO MAR 16)	2016
  NC 750 D Integra S (G) (FROM APR 16)	2016
  NC 750 D Integra S (H)	2017
  NC 750 D Integra S (H) (TO JAN 18)	2018
  NC 750 D Integra S (J) (FROM FEB 18)	2018
  NC 750 SA (E)	2014 2015
  NC 750 SA (G)	2016
  NC 750 SA (H)	2017
  NC 750 SA (J)	2018
  NC 750 SAD (E)	2014 2015
  NC 750 SAD (G)	2016
  NC 750 SAD (H)	2017
  NC 750 SAD (J)	2018
  NC 750 X AD	2019 2020 2021
  NC 750 X AD (E)	2014 2015
  NC 750 X AD (G)	2016
  NC 750 X AD (H)	2017
  NC 750 X AD (J)	2018
  NC750 D Integra	2019 2020 2021
  NC750 D Integra S (E)	2014 2015
  NC750 D Integra S (E) (TO MAR 16)	2016
  NC750 D Integra S (G) (FROM APR 16)	2016
  NC750 D Integra S (H)	2017
  NC750 D Integra S (H) (TO JAN 18)	2018
  NC750 D Integra S (J) (FROM FEB 18)	2018
