Description

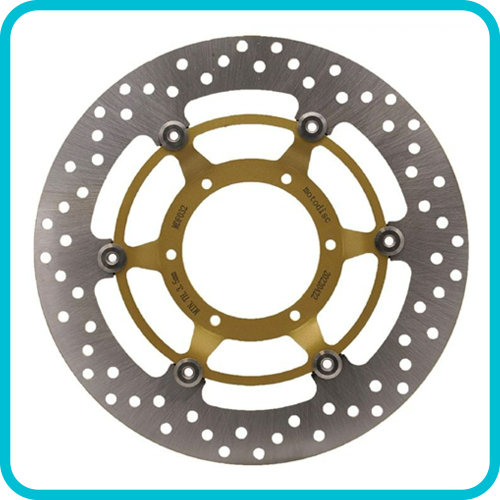

HONDA MTX Performance Brake Disc Front Floating Round Honda MD1141

Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market. Performance at your fingertips.

Discs sold singularly.

Floating discs
Made from two segments of stainless steel which are rivetted together with bobbins to allow the braking surface of the disc to expand under the extreme temperatures of braking. Manufactured from Japanese SUS 420 stainless steel, then heat treated to HRC 36+-2 standards while the discs centres are manufactured from steel or alloy. Floating discs improve braking performance by ensuring the disc is always in perfect alignment with your pads for the perfect contact throughout all operating temperatures. Lightening and drill holes are then applied to further improve braking performance and reduce the disc temperature.

• Precision CNC machined and laser cut technology
• Japanese SUS 420 Stainless Steel
• Replacement for Original Equipment
• OEM Design; lightening & drill hole patterns


  Detail	Value
  Outer Diameter (mm)	296
  Inner Diameter (mm)	94
  Bolt Hole Circumference (mm)	110
  Bolt Hole Quantity	6
  Bolt Hole Size (mm)	6.5
  Thickness (mm)	4.5
  Minimum Thickness (mm)	3.5
  Bolt Hole Type	Straight

  Honda

  Model	Year
  CB 900 F Hornet (2)	2001 2002 2003 2004
  CB 900 F Hornet (2) (TO FEB 05)	2005
  CB 900 F Hornet (5)	2006
  CB 900 F Hornet (5) (FROM MAR 05)	2005
  CB 900 F Hornet (5) (TO APR 07)	2007
  CB 900 F Hornet (7)	2008
  CB 900 F Hornet (7) (FROM MAY 07)	2007
  CBR 600 F (1)	2001
  CBR 600 F (1) (FROM DEC 00)	2000
  CBR 600 F (1) (TO JAN 02)	2002
  CBR 600 F (2) (FROM FEB 02)	2002
  CBR 600 F (2) (TO AUG 03)	2003
  CBR 600 F (4) (FROM SEP 03)	2003
  CBR 600 F (4) (TO AUG 04)	2004
  CBR 600 F (5) (FROM SEP 04)	2004
  CBR 600 F (5) (TO SEP 05)	2005
  CBR 600 F (6)	2006
  CBR 600 F (6) (FROM OCT 05)	2005
  CBR 600 F (6) (TO AUG 07)	2007
  CBR 600 FS (1)	2001 2002
  CBR 600 FS (2)	2002 2003
  VTX 1800 C (2)	2003
  VTX 1800 C (2) (FROM APR 02)	2002
  VTX 1800 C (4)	2004
  VTX 1800 C (5)	2005 2006 2007 2008
